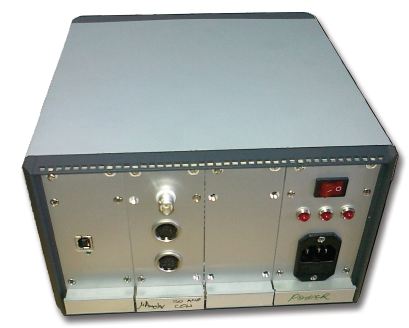

- Insulation Defect Locator IDL-2x50-100 System Features:
-
- Two clamp-on 50-100 Current Transducers to enable current difference measurements in electrical conductors at high voltage.
- Conductors do not have to be cut or insulation removed.
- Simultaneous current measurements enable defect or fault location in complex systems, even with more than one leakage path to ground.
- Computer control via fiber-optic isolated USB interface for electrical isolation and operator safety.
|
|
| Insulation Defect Locator
|
- Insulation Defect Locator IDL-2x50-100 System Features:
-
- High Voltage Bias Power Supply output ramp profile programmed from the computer to provide reproducible, smooth voltage ramps to avoid high current capacitive charging transients.
- The IDL System is controlled by a laptop PC with LabView software to control the High Voltage Power Supply output voltage and to acquire the instantaneous current outputs from the two MicroAmmeter Current Transducers. The software includes averaging of the current readings and presentation of the data with selection of the scaling for the current versus time display.
- Data acquired and displayed in real time for immediate analysis.
|
|
| Insulation Defect Locator Software screen sample
|
- Insulation Defect Locator IDL-2x50-100 System Features:
-
- High Voltage Bias Power Supply output ramp profile programmed from the computer to provide reproducible, smooth voltage ramps to avoid high current capacitive charging transients.
- The IDL System is controlled by a laptop PC with LabView software to control the High Voltage Power Supply output voltage and to acquire the instantaneous current outputs from the two MicroAmmeter Current Transducers. The software includes averaging of the current readings and presentation of the data with selection of the scaling for the current versus time display.
- Data acquired and displayed in real time for immediate analysis.
|
